Prime

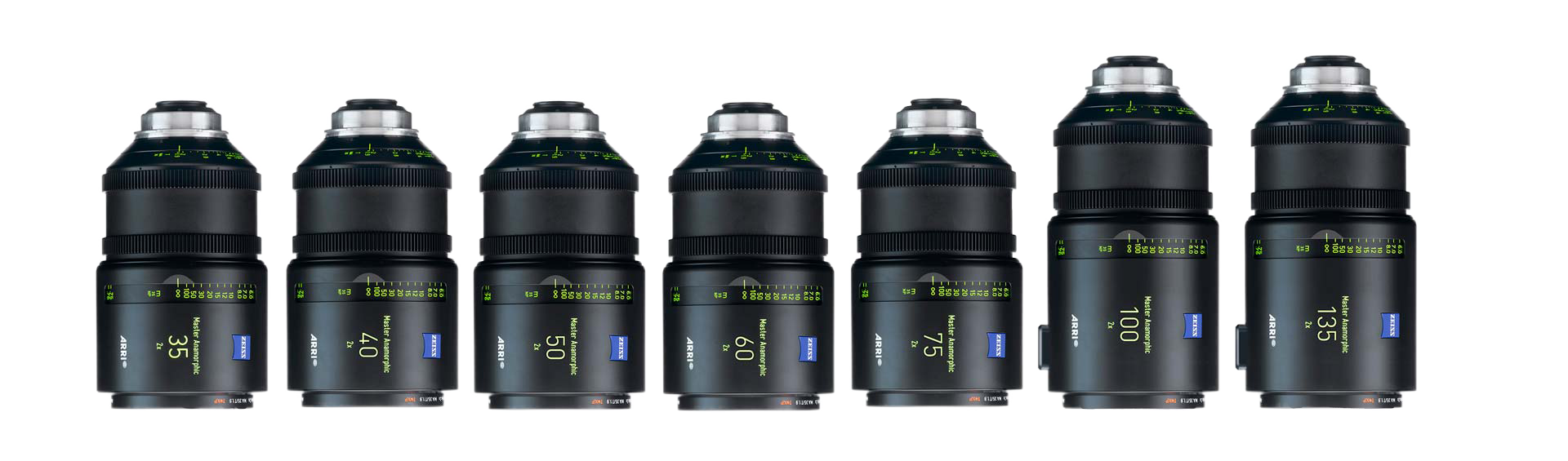

ARRI Master Anamorphic Series

Focal Length Aperture CF Coverage Mount Front Diameter Squeeze Factor Weight More info
28mm * T1.9 2’3″ S35 PL 95mm 2x 2.5kg Data Sheet
35mm T1.9 2’6″ S35 PL 95mm 2x 2.6kg Data Sheet
40mm T1.9 2’4″ S35 PL 95mm 2x 2.7kg Data Sheet
50mm T1.9 2’6″ S35 PL 95mm 2x 2.6kg Data Sheet
60mm T1.9 3′ S35 PL 95mm 2x 2.7kg Data Sheet
75mm T1.9 3′ S35 PL 95mm 2x 2.6kg Data Sheet
100mm T1.9 3’1 » S35 PL 95mm 2x 3.1kg Data Sheet
135mm * T1.9 3’11 » S35 PL 95mm 2x 3.8kg Data Sheet
180mm * T2.8 5′ S35 PL 95mm 2x 3.2kg Data Sheet
* = Extra order

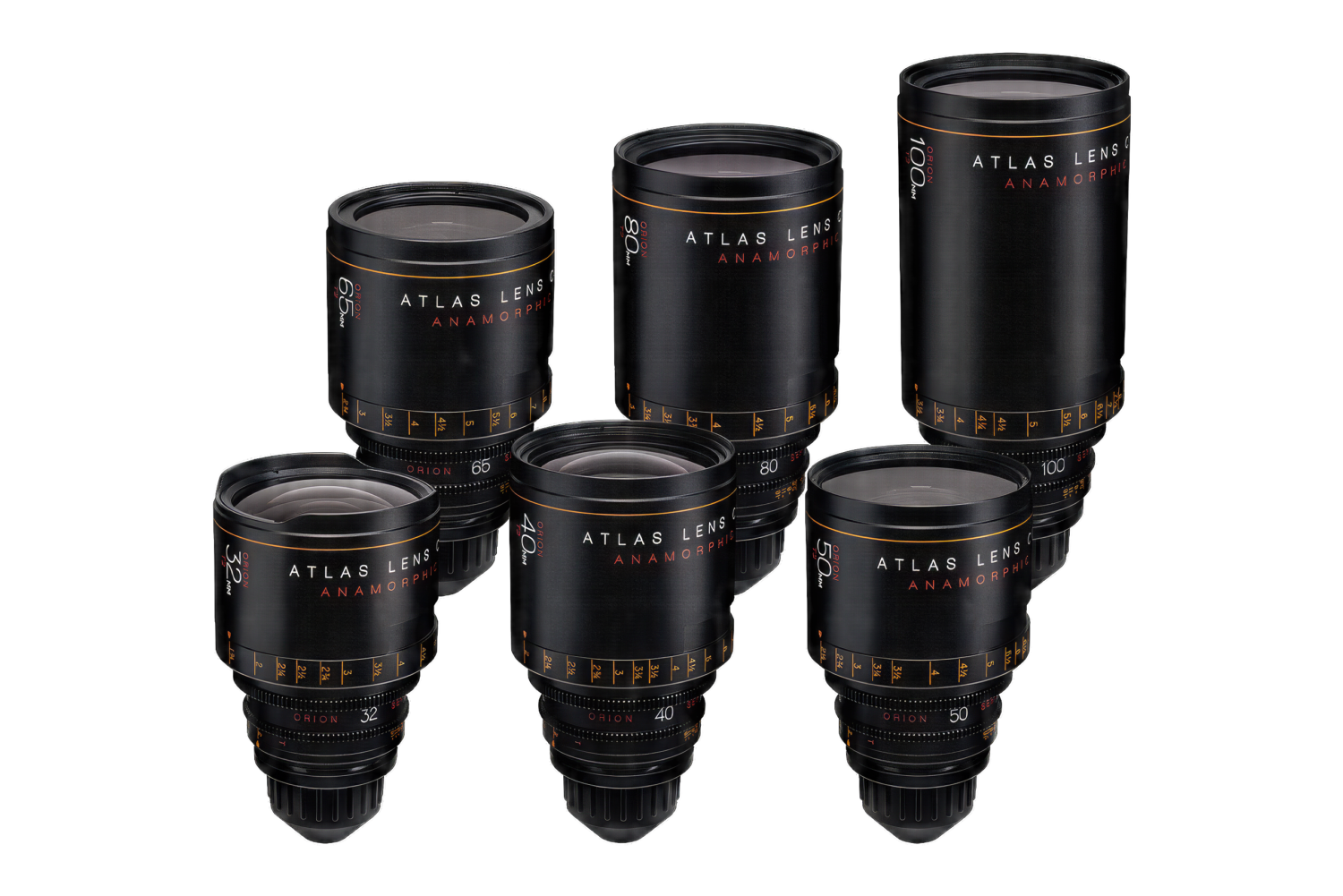

ATLAS Orion Anamorphic 2x Series

Focal Length Aperture CF Coverage Mount Front Diameter Horizontal Squeeze Weight More info
25mm T2.0 1′ 6″ S35 PL 136mm 2x 2.8 kg Data Sheet
32mm T2.0 1′ 9″ S35 PL 114mm 2x 2.1 kg Data Sheet
40mm T2.0 2′ 0″ S35 PL 114mm 2x 2.4 kg Data Sheet
50mm T2.0 2′ 6″ S35 PL 114mm 2x 2.3 kg Data Sheet
65mm T2.0 2′ 9″ S35 PL 114mm 2x 2.3 kg Data Sheet
80mm T2.0 3′ 0″ S35 PL 114mm 2x 2.7 kg Data Sheet
100mm T2.0 3′ 6″ S35 PL 114mm 2x 3.0 kg Data Sheet

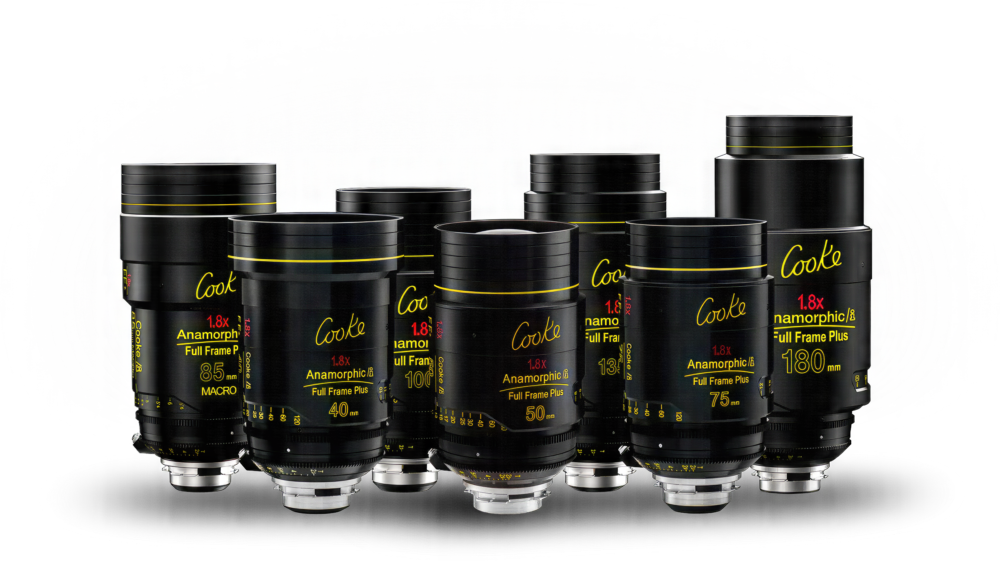

COOKE Anamorphic/i 1.8x Series

Focal Length Aperture CF Coverage Mount Front Diameter Horizontal Squeeze Weight More info
32mm T2.3 3′ Full Frame PL 136 mm 1.8x 4.2 kg Data Sheet
40mm T2.3 3′ Full Frame PL 136 mm 1.8x 4.4 kg Data Sheet
50mm T2.3 2’9″ Full Frame PL 110 mm 1.8x 4 kg Data Sheet
75mm T2.3 3’3″ Full Frame PL 110 mm 1.8x 3.5 kg Data Sheet
85mm T2.8 22″ Full Frame PL 136 mm 1.8x 5.2 kg Data Sheet
100mm T2.3 4′ Full Frame PL 110 mm 1.8x 3.8 kg Data Sheet
135mm T2.3 5′ Full Frame PL 110 mm 1.8x 5 kg Data Sheet
180mm T2.9 7′ Full Frame PL 110 mm 1.8x 6.2 kg Data Sheet

Zoom

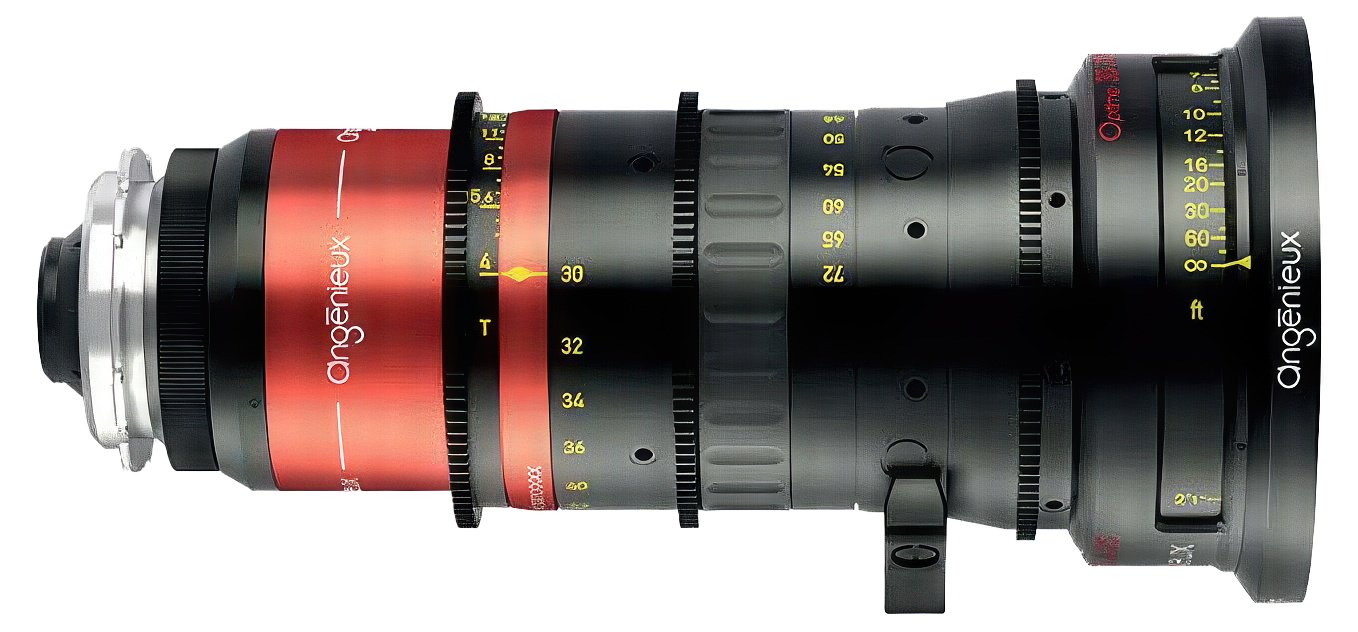

Angénieux Optimo Anamorphic

Focal Length Aperture CF Ratio Coverage Mount Front Diameter Horizontal Squeeze Weight More info
56 – 152mm T4 2’1″ 2.7x S35 PL 121 mm 2x 2.2kg Data Sheet
