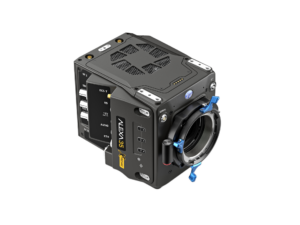

| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 27.99 x 19.22 mm |
| Resolution | 4.6K – 4448 x 3096 |
| Maximum Frame Rate | 120fps @ 4K |
| File Size with Open Gate / 24 fps / 1 hour | ProRes XQ 1.3 TB – ArriRaw 2.1 TB |
| Weight | ~ 2.9 KG |
| Built-in ND | Clear, 0.6, 1.2, 1.8 |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 |
| Sensor Size | Full Frame – 36.7 x 25.5 mm |
| Resolution | 4.5K – 4448 x 3096 |
| S35 Resolution | 2.8K – 2880 x 2160 |
| Maximum Frame Rate | 150 fps @ 4.5K |
| File Size with Open Gate / 24 fps / 1 hour | ProRes XQ 1.4 TB – ArriRaw 1.8 TB |
| Weight | ~ 7.8 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 28.25 x 18.17 mm |
| Resolution | 3.4K – 3424 x 2202 |
| Maximum Frame Rate | 200 fps @ 2K |
| File Size with Open Gate / 24 fps / 1 hour | ProRes XQ 0.5 TB – ArriRaw 1 TB |
| Weight | ∼ 2.3 KG |
| Built-in ND | Clear, 0.6, 1.2, 2.1 |
| More info | Technical Data Sheet |

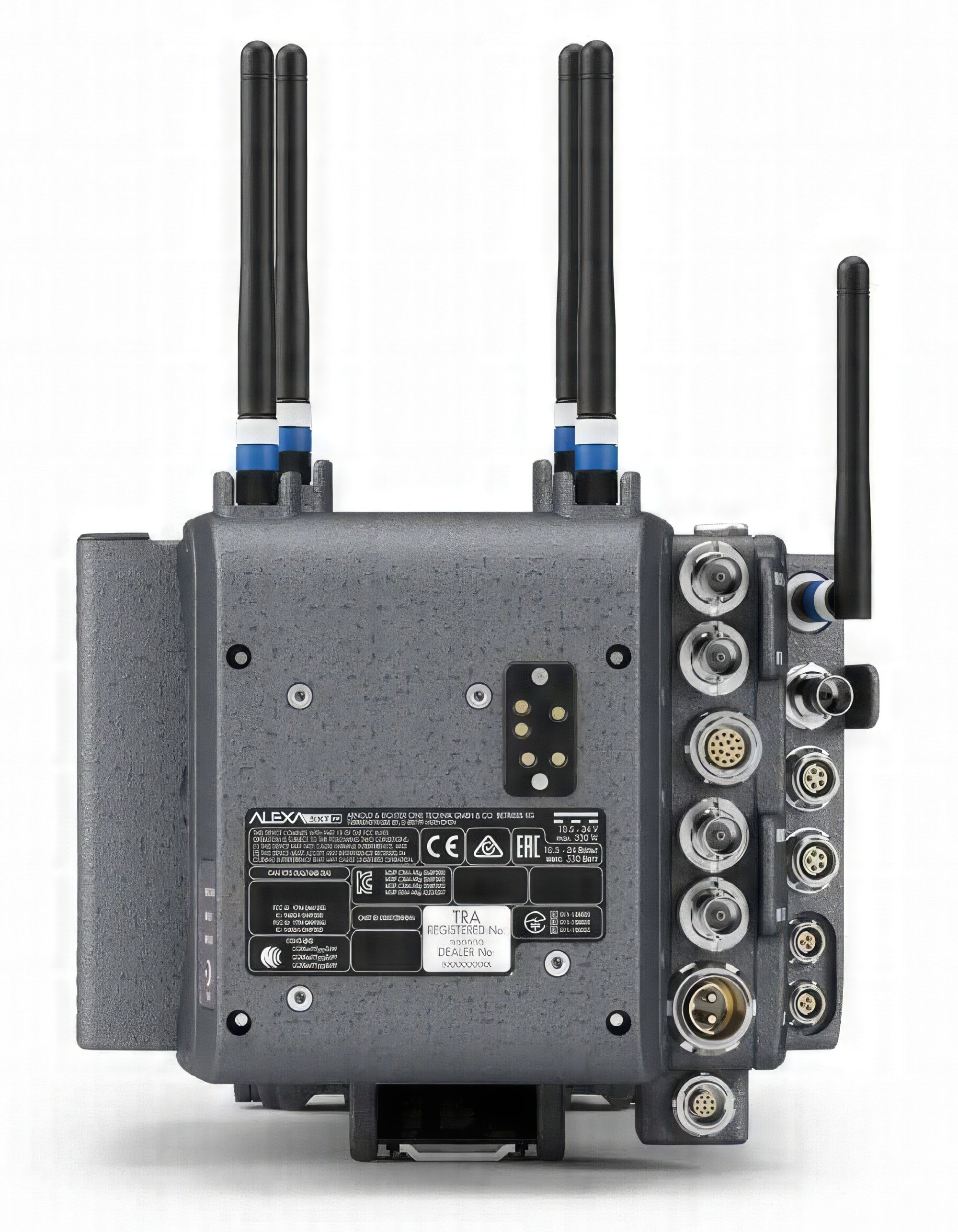

| Base sensitivity | EI 800 |
| Sensor size | Large Format – 36.70 x 25.54 mm |
| Resolution | 4.6K – 4448 x 3096 |
| S35 resolution | 3.4K – 3424 x 2202 |
| Maximum Frame Rate | 90fps @ 2.8K |
| File Size with Open Gate / 24 fps / 1 hour | ProRes XQ 1.2TB – ArriRaw 1.8TB |
| Weight | ~2.6 KG |
| Built-in ND | Clear, 0.6, 1.2, 2.1 |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 28.3 x 18.2 mm |
| Resolution | 3.4K – 3424 x 2202 |
| Maximum Frame Rate | 120fps @ 3.2K |
| File Size with Open Gate / 24 fps / 1 hour | ProRes XQ 0.7 GB – ArriRaw 1 TB |
| Weight | ~ 6.5 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 500 / EI 2500 |
| Sensor Size | Full Frame – 36 x 24 mm |
| Resolution | 6K – 6048 x 4032 |
| S35 Resolution | 4K – 4096 x 3024 |
| Maximum Frame Rate | 120 fps @ 4K |
| File Size with Open Gate / 24 fps / 1 hour | X-OCN XT 1.27 TB |
| Weight | ~ 3.9 KG |
| Built-in ND Filters | Clear, 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4 |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 / EI 3200 |
| Sensor Size | Full Frame – 35.9 x 24.1 mm |
| Resolution | 8.6K – 8640 x 5760 |
| S35 Resolution | 5.8 K – 5792 x 2576 |
| Maximum Frame Rate | 120 fps @ 5.5K |
| File Size with Open Gate / 24 fps / 1 hour | X-OCN XT 2.59 TB |
| Weight | ~ 4.6 KG |
| Built-in ND Filters | Clear, 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4 |
| More info | Technical Data Sheet |

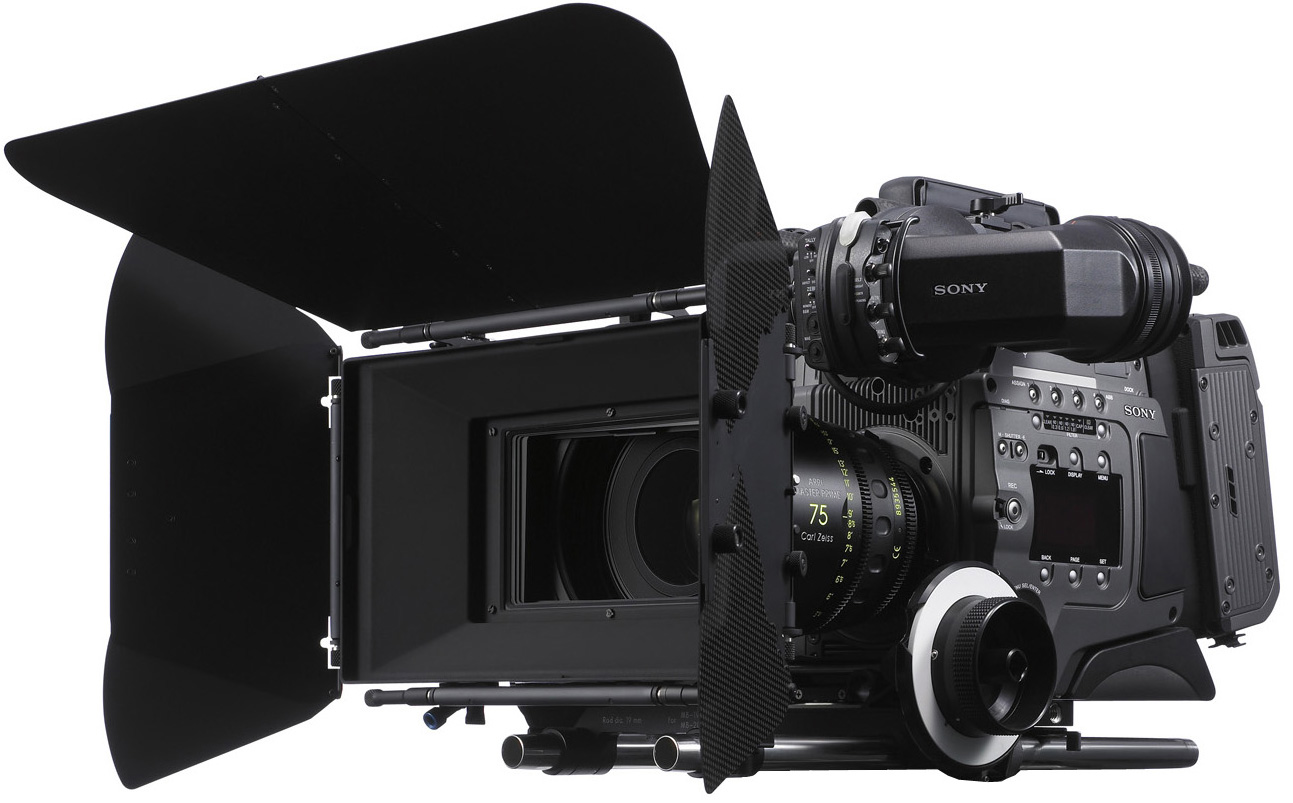

| Base Sensitivity | EI 500 / EI 2500 |
| Sensor Size | Super 35 – 24.89 x 18.66 mm |
| Resolution | 8K – 8192 x 4320 |
| Maximum Frame Rate | 240 fps @ 2K |
| File Size with Open Gate / 24 fps / 1 hour | RAW-SQ 1 TB |
| Weight | ~ 6.5 KG |
| Built-in ND | Clear, 0.9, 1.2, 1.5, 1.8 |
| More info | Technical Data Sheet |

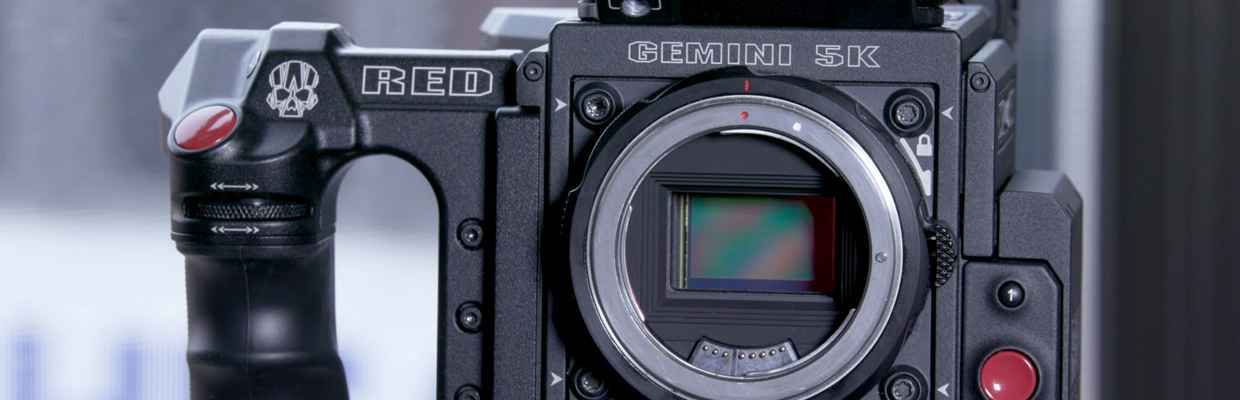

| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 30.72 x 18.00 mm |
| Resolution | 5K – 5120 x 3000 |
| Maximum Frame Rate | 300 fps @ 2K |
| File Size with 5K WS / 24 fps / 1 hour | R3D 2:1 0.83 TB |
| Weight | 1.5 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |

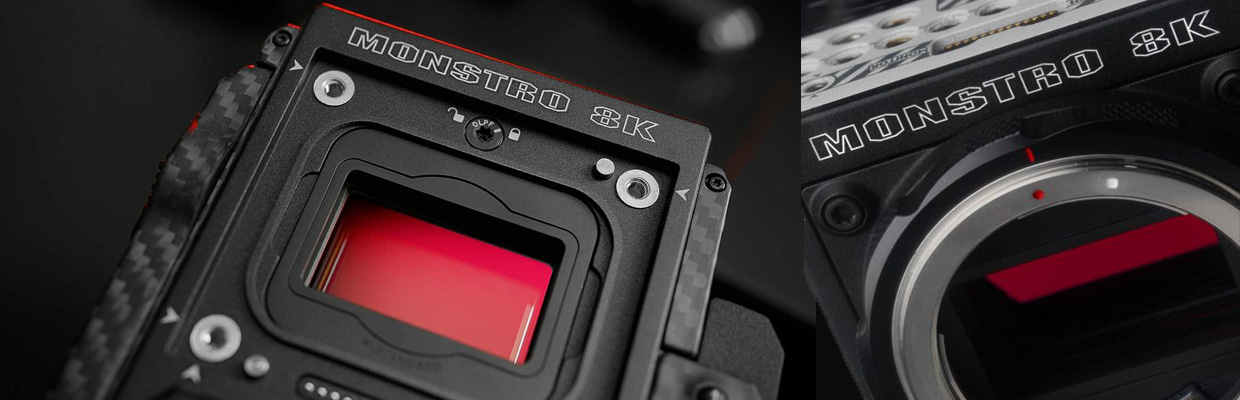

| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 29.90 x 15.77 mm |
| Resolution | 8K – 8192 x 4320 |
| Maximum Frame Rate | 300 fps @ 2K |
| File Size with 8K WS / 24 fps / 1 hour | R3D 4:1 1.06 TB |
| Weight | ~ 1.5 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 |
| Sensor Size | Full Frame – 40.96 x 21.60 mm |
| Resolution | 8K – 8192 x 4320 |
| S35 Resolution | 5K – 5120 x 2700 |
| Maximum Frame Rate | 300 fps @ 2K |
| File Size with 8K WS / 24 fps / 1 hour | R3D 4:1 1.06 TB |
| Weight | ~ 1.5 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 |
| Sensor Size | Super 35 – 25.35 x 14.25 mm |
| Resolution | 4.6K – 4608 x 2592 |
| Maximum Frame Rate | 300fps @ 1080P |
| File Size with 4.6K / 24 fps / 1 hour | BRAW 1:3 0.65 TB |
| Weight | ~ 2.3 KG |
| Built-in ND | Clear, 0.6, 1.2, 1.8 |
| More info | Technical Data Sheet |

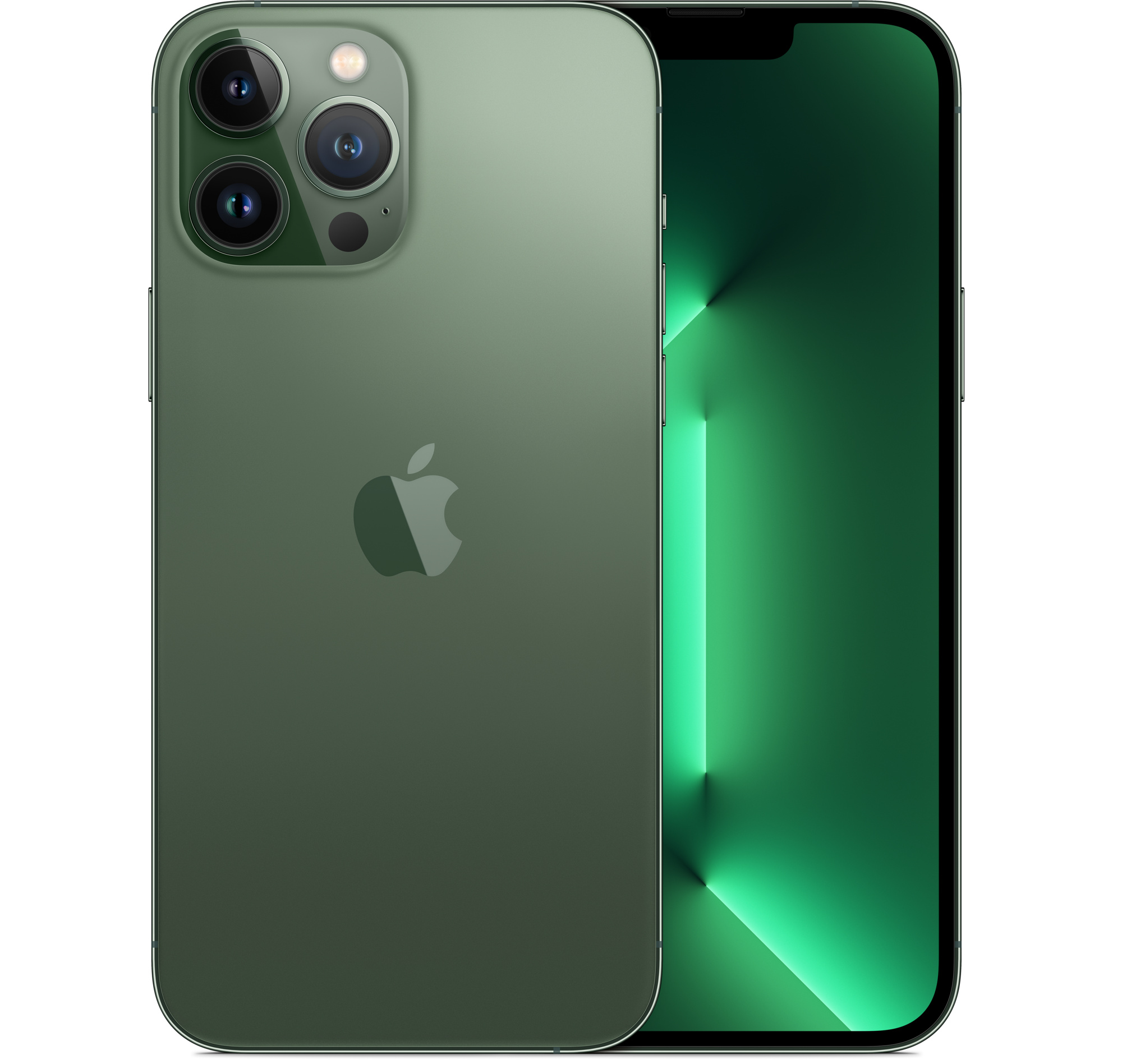

| Sensor Size | 1/1.9″ – 1/3.4″ – 1/3.6″ |
| Resolution | 4K – 4096 x 2160 |
| Maximum Frame Rate | 240fps @ 1080p |
| File Size with 4K / 24 fps / 1 hour | ProRes 422 HQ 339 GB |
| Weight | ~ 228 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Capacity | 256 GB |
| Sensor Size | 1/65″ – 1/3.4″ – 1/1.9″ |
| Resolution | 4K – 4096 x 2160 |
| Maximum Frame Rate | 240fps @ 1080p |
| File Size with 4K / 24 fps / 1 hour | ProRes 422 HQ 339 GB |
| Weight | ~ 240 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Sensor Size | Full Frame – 36.00 x 24.00 mm |
| Resolution | 1080p – 1920 x 1080 |
| Maximum Frame Rate | 60fps @ 720p |
| File Size with 1080p / 24 fps / 1 hour | 8 GB |
| Weight | ~ 950 g |
| Built-in ND | None |
| More info | Technical Data Sheet |

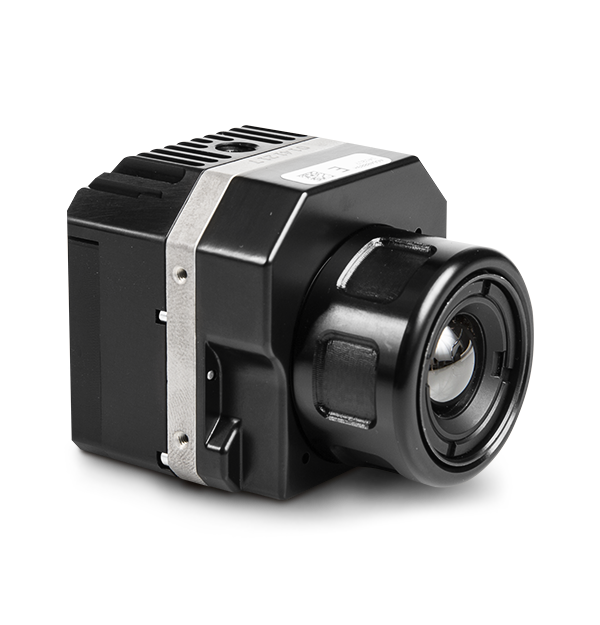

| Focal Length | 13 mm |
| Sensor Size | N/a |
| Resolution | 640 x 512 |
| Maximum Frame Rate | 30 fps @ Resolution |
| File Size with 4K / 24 fps / 1 hour | N/a |
| Weight | ~ 113.4 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | N/a |
| Sensor Size | 1/2.3 – 6.17 x 4.55 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 240fps @ 1080P |
| File Size with 4K / 24 fps / 1 hour | HEVC 44 GB |
| Weight | ~ 126 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | N/a |
| Sensor Size | 1/2.3″ – 6.17 x 4.55 mm |
| Resolution | 5K – 5120 x 2880 |
| Maximum Frame Rate | 240fps @ 1080P |
| File Size with 4K / 24 fps / 1 hour | HEVC 53 GB |
| Weight | ~ 158 g |
| Built-in ND | None |
| More info | Technical Data Sheet |

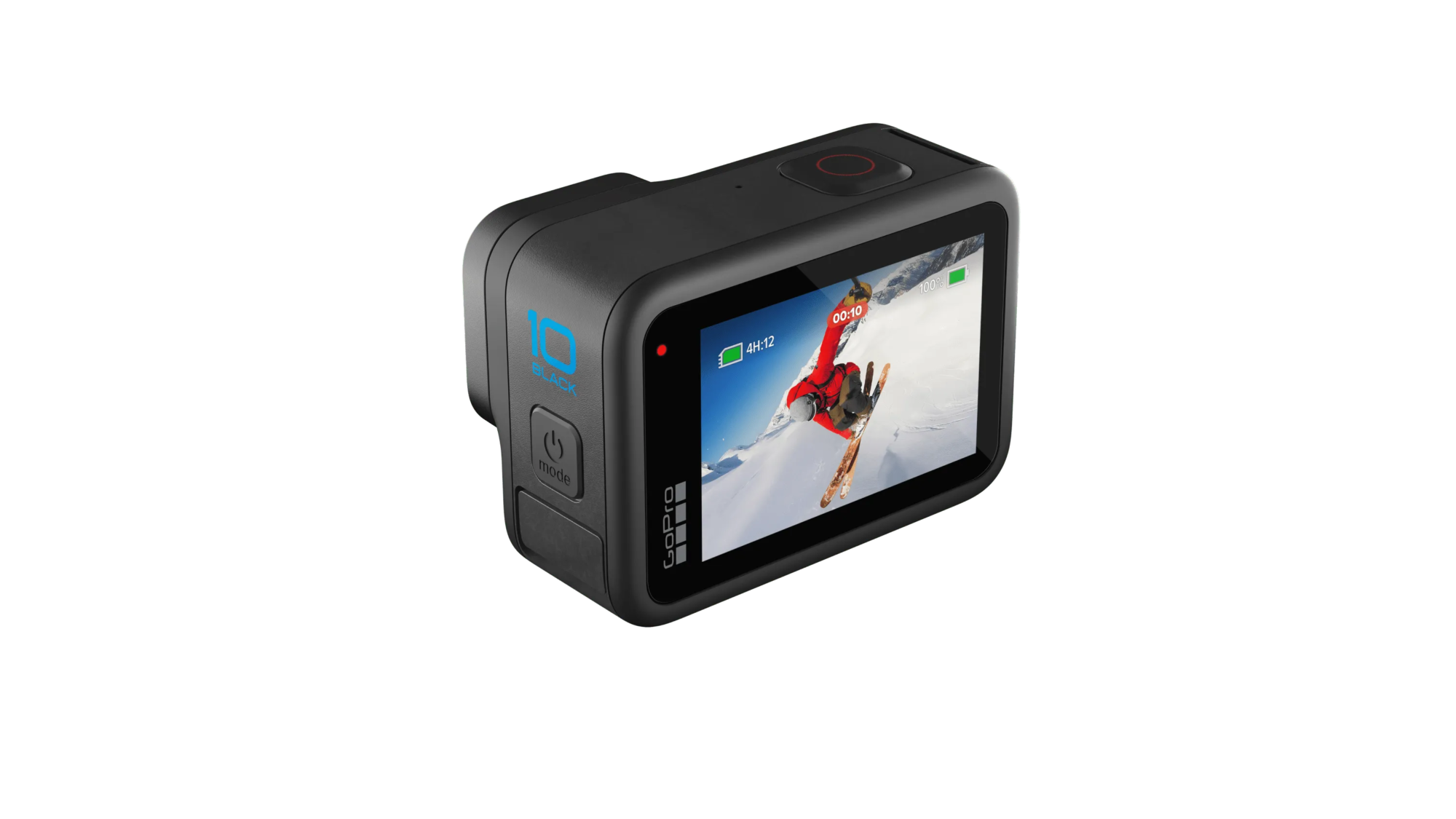

| Base Sensitivity | N/a |
| Sensor Size | 1/2.3″ – 6.17 x 4.55 mm |
| Resolution | 5.3K – 5312 x 2988 |
| Maximum Frame Rate | 240fps @ 2.7K |
| File Size with 4K / 24 fps / 1 hour | HEVC 53 GB |
| Weight | ~ 153 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Sensor Size | 1/3″ |
| Resolution | 1080p – 1920 x 1080 |
| Maximum Frame Rate | 120 fps @ 480p |
| File Size with 1080p / 30 fps / 1 hour | MPEG-4 AVC 7 GB |
| Weight | ~ 45 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 640 / EI 4000 |
| Sensor Size | Full Frame – 35.60 x 23.8 mm |
| Resolution | 6K – 5952 x 3968 |
| S35 Resolution | 4K – 4096 x 2160 |
| Maximum Frame Rate | 120 fps @ 1080p |
| File Size with Open Gate / 24 fps / 1 hour | HEVC 10-Bit LongGOP 90 GB |
| Weight | ~ 1.2 KG |
| Built-in ND | None |
| More info | Technical Data Sheet |

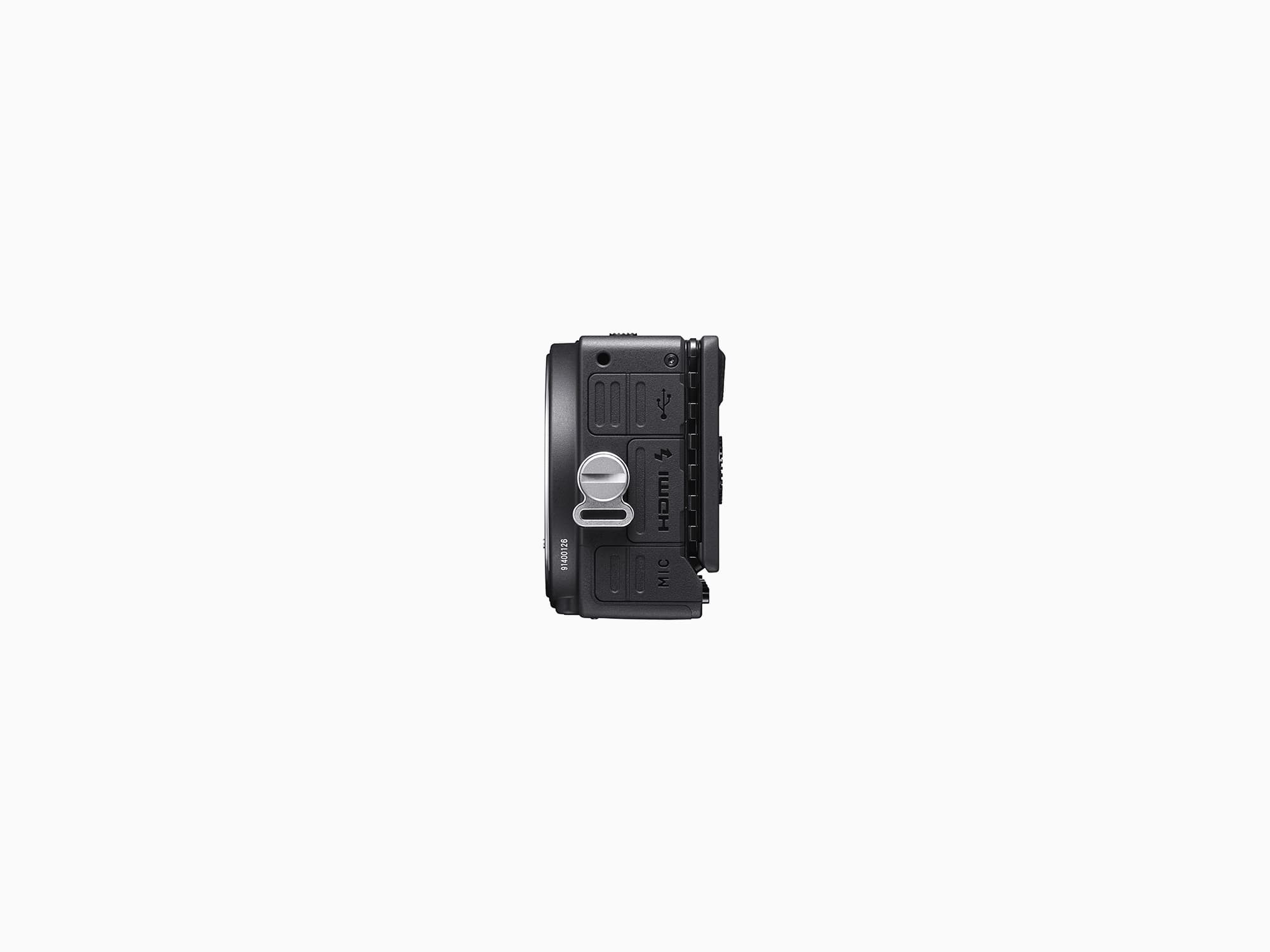

| Base Sensitivity | EI 100 / EI 640 |
| Sensor Size | Full Frame – 35.90 x 23.90 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 120 fps @ 1080p |
| File Size with 4K / 24 fps / 1 hour | CinemaDNG 1.1 TB |
| Weight | ~ 422 g |
| Built-in ND | None |
| More info | Technical Data Sheet |

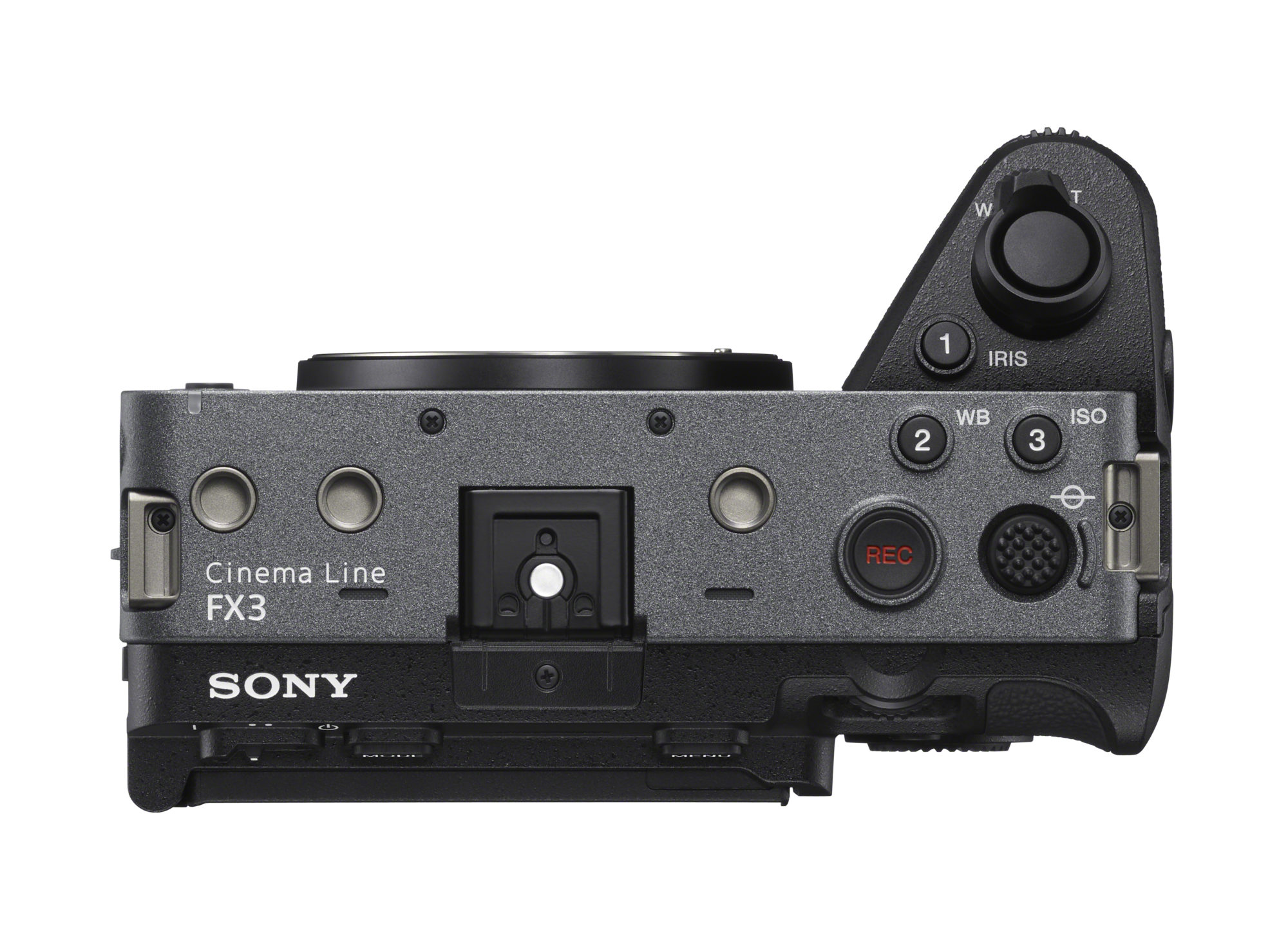

| Base Sensitivity | EI 1600 / EI 3200 |
| Sensor Size | Full Frame – 35.60 x 23.80 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 120 fps @ 1080p |
| File Size with Open Gate / 24 fps / 1 hour | XAVC S 45 GB |
| Weight | ~ 627 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 640 / EI 12800 |
| Sensor Size | Full Frame – 35.60 x 23.80 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 120 fps @ 4K |
| File Size with Open Gate / 24 fps / 1 hour | XAVC HS 45 GB |
| Weight | ~ 700 g |
| Built-in ND | None |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 2000 |
| Sensor Size | Super 35 – 24.89 x 18.66 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 240 fps @ 1080P |
| File Size with 4K / 24 fps / 1 hour | XAVC Long 45 GB |
| Weight | ~ 2.2 KG |
| Built-in ND | Electronic – 1/4ND to 1/128ND Linear |
| More info | Technical Data Sheet |
| Base Sensitivity | EI 800 / EI 12800 |
| Sensor Size | Full Frame – 35.60 x 23.80 mm |
| Resolution | 4K – 3840 x 2160 |
| Maximum Frame Rate | 240 fps @ 1080P |
| File Size with 4K / 24 fps / 1 hour | XAVC S-I 108 GB |
| Weight | ~ 715 g |
| Built-in ND | None |
| More info | Technical Data Sheet |

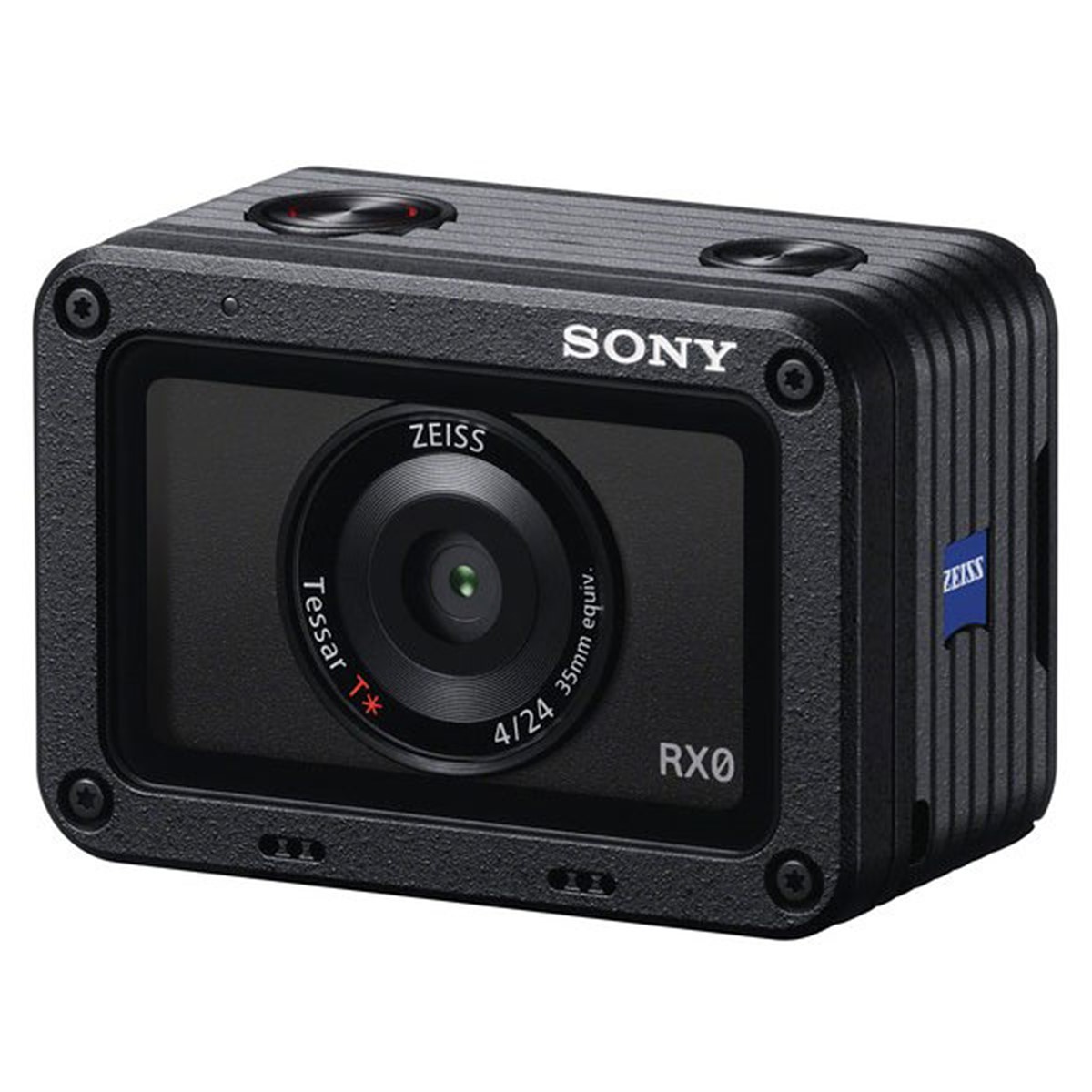

| Base Sensitivity | N/a |
| Sensor Size | 1.0″ – 13.21 x 8.89 mm |
| Resolution | 1080p – 1920 x 1080 |
| Maximum Frame Rate | 120 fps @ 720P |
| File Size with 1080p / 24 fps / 1 hour | XAVC S 23 GB |
| Weight | ~ 110 g |
| Built-in ND | None |
| More info | Technical Data Sheet |

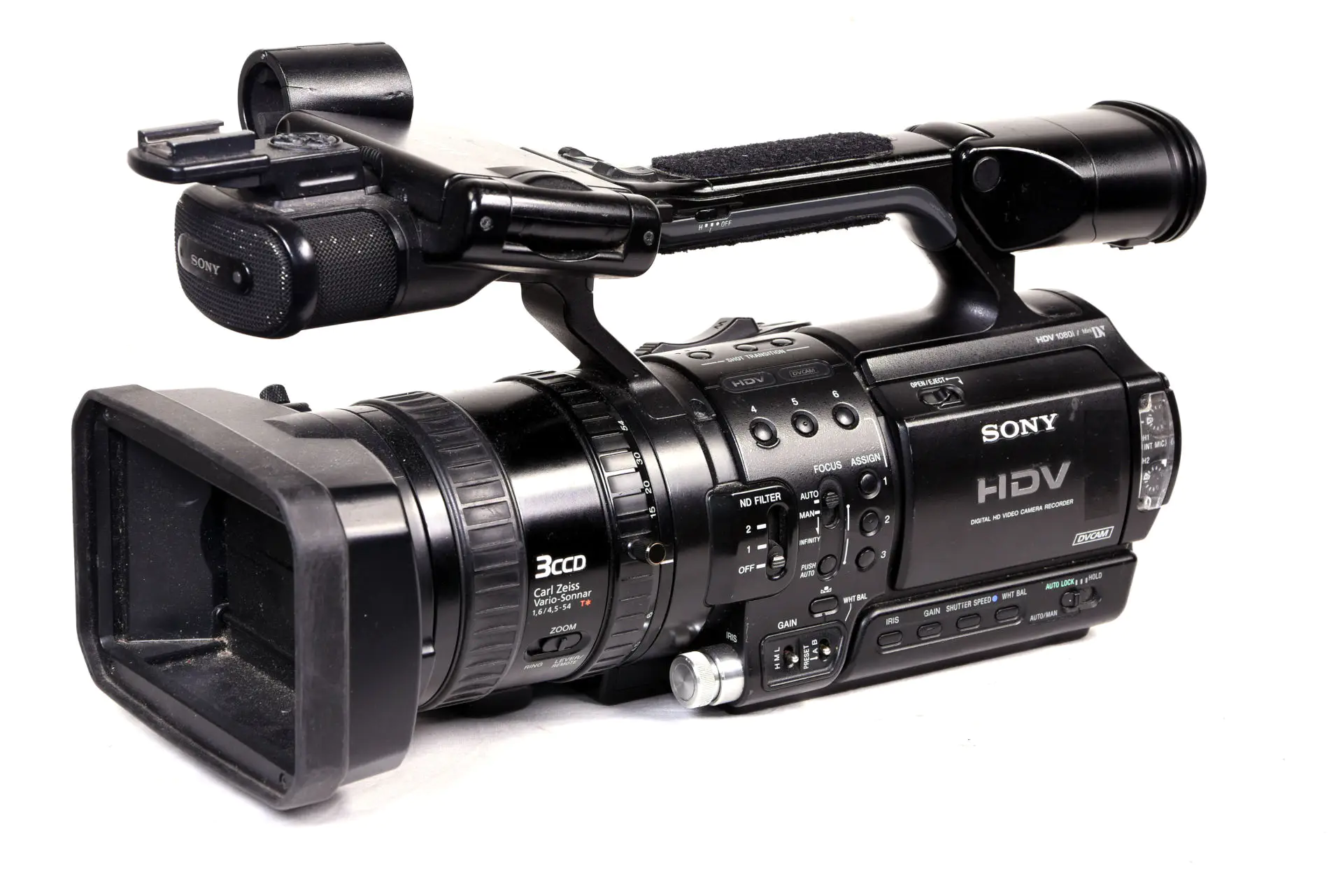

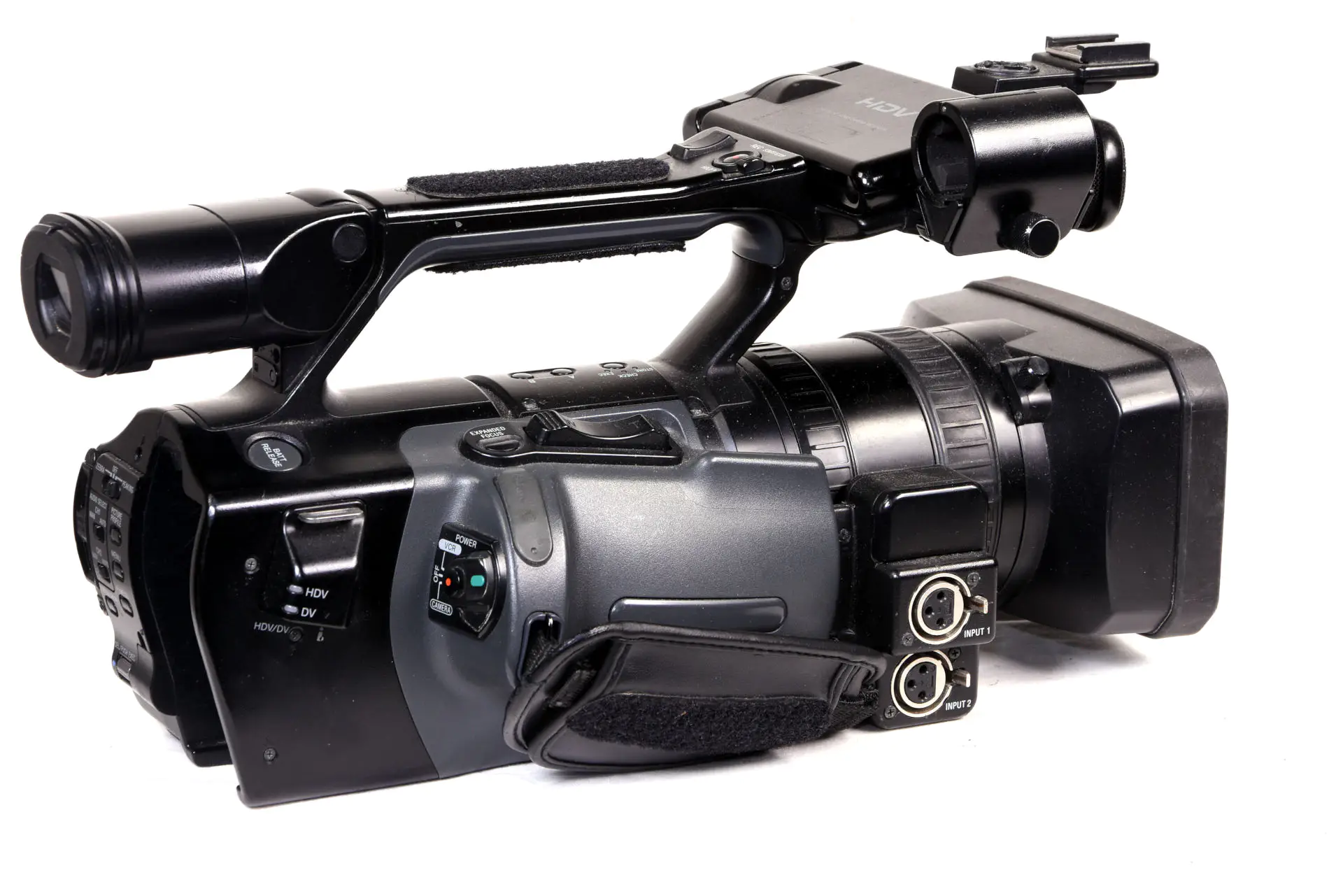

| Sensor Size | 1/3″ CCD |
| Resolution | 1080p – 1920 x 1080 |
| Maximum Frame Rate | 60i @ 1080p |
| Record time in DVCAM | 41 min with PHDVM-63DM cassette |
| Record time in HDV/DV SP | 63 min with PHDVM-63DM cassette |
| Weight | ~ 2.1 KG |
| Built-in ND Filters | 1.2, 1.5 |
| More info | Technical Data Sheet |
