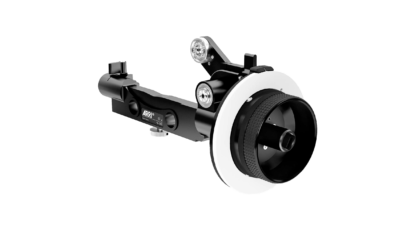

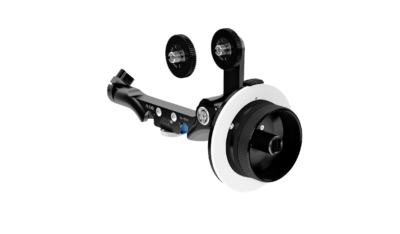

Follow Focus

Hand / Control Units


• Single axis lens control • Backlit control knob
• For focus, iris, or zoom • Remote REC and Tally
• Use with WCU-4 for dual-axis control • Ergonomic wooden handgrip
• Compact form More Info

• Precise control of focus and iris • Wired or wireless operation
• Adjustable handgrip • Transreflective display
• Backlit buttons • Water-resistant
• Illuminated index scale More Info

• Precise control of focus, iris, and zoom • Ergonomic design for prolonged use
• Real-time lens data monitoring • Dual-axis control capabilities with SXU-1
• Customizable UI with programmable buttons • Compatible with a range of digital motors
• Seamless integration with various ARRI cameras More Info

• Lightweight magnesium housing • Lens file browser for intuitive file management
• Frequency Analyzer • Smart focus rings for reverse-pullers and left-handers
• Predictive lens mapping • Weatherproof
• Smart iris rings More Info

• Classic shape zoom controller • Compact & Lightweight Design
• Full speed CLM-3 support • Dual Motor Control Capabilities
• Supports LDS Lens Data System • Quick Setup with Auto Configuration
• Full speed lens motor drive even with
12volts video power supply
More Info

• EF, ENG, and cine lens control • Proven ergonomics
• Advanced camera control • Intuitive user interface
• Solid mechanical design • Set focus, iris, zoom limits
• Override the HI-5 and WCU-4 hand unit More Info

• 3-Axis motor controller • Camera start/stop trigger
• Compact & lightweight design • Pan-Bar zoom control
• Digital motor control • Versatile camera compatibility
• Ergonomic design More Info

• Precision wireless lens control • Integrated lens data and metadata support
• Intuitive touch display interface • Dynamic lens mapping for accurate focus control
• Ultra-compact and lightweight design • Quick and simple motor calibration process
More Info

• cPRO PLUS integrates all cPRO features • All cPRO licenses come pre-installed.
• 3 additional user buttons • Import/Export ARRI lens files
• Advanced focus knob with torque adjustment • In-depth camera control
• Stealth black design for a sleek appearance More Info

• Lens mapping compatibility • Wireless frequency management
• Integrated motor controller • Customizable motor profiles
• Multi-axis lens control • Lightweight and compact design
• High-resolution OLED display More Info

• Zoom control on pan-bar • Compatible with popular cameras
• User-configurable zoom speed • Precise and responsive zoom control
• Integrated focus mapping • Easy integration with Cinefade system
• Compact and lightweight design More Info

Motors


Weight 192 g
Torque 0.3 Nm (0.5 Nm peak)
Power Consumption 20 W (peak)
Input Voltage 12 – 34 VDC
Connector LBUS
Compatibility Refer to page 12 of the manual

Accessories: Motor gear 0.8m 40t, rod bracket, 19mm clamp console + 15mm rod adapter, LBUS cable


Weight 153 g
Torque 0.25 Nm (0.3 Nm peak)
Operating Current 2 – 6 A
Input Voltage 12 – 34 VDC
Connector LBUS
Compatibility Refer to page 12 of the manual

Accessories: Motor gear 0.8m 40t, antenna 2,4GHz, 19mm clamp console + 15mm rod adapter, LBUS cable, RF-CAM cable


Weight 325 g
Torque 0.7 Nm (1 Nm peak)
Power Consumption 32 W (peak)
Input Voltage 12 – 34 VDC
Connector LBUS
Compatibility Refer to page 12 of the manual

Accessories: Motor gear 0.8m 60t, 19mm clamp console + 15mm rod adapter, LBUS cable


Weight 398 g
Torque N/a
Power Consumption N/a
Input Voltage N/a
Connector Fischer
Compatibility UMC-4, SMC-1

Accessories: Motor gear 0.8m 60t, 19mm clamp console + 15mm rod adapter, Fischer cable


Weight 270 g
Torque 0.5 Nm (1 Nm peak)
Power Consumption N/a
Input Voltage N/a
Connector Fischer
Compatibility UMC-4, SMC-1

Accessories: Motor gear 0.8m 60t, 19mm clamp console + 15mm rod adapter, Fischer cable


Weight 205 g
Torque N/a
Power Consumption N/a
Input Voltage N/a
Connector Integrated
Compatibility UMC-4, SMC-1

Accessories: Motor gear 0.8m 40t, 19mm clamp console + 15mm rod adapter


Weight 211 g
Torque 0.25 Nm (0.3 Nm peak)
Operating Current 2 – 6 A
Input Voltage 10.5 – 35 V
Connector LBUS
Compatibility Data Sheet

Accessories: Motor gear 0.8m 40t, 19mm clamp console + 15mm rod adapter, cable


Weight 222 g
Torque 1.8 Nm
Power Consumption N/a
Input Voltage N/a
Connector Lemo 7p
Compatibility Data Sheet

Accessories: Motor gear 0.8m 40t, 19mm clamp console + 15mm rod adapter, cable


Weight 465 g
Torque N/a
Power Consumption 2.7 A peak
Input Voltage N/a
Connector Lemo 7p
Compatibility MDR-3, MDR-4, Digital Micro Force 3

Accessories: Motor gear 0.8m 40t, cable


Weight 290 g
Torque N/a
Power Consumption N/a
Input Voltage N/a
Connector Lemo 7
Compatibility MDR-3, MDR-4, Digital Micro Force 3

Accessories: Motor gear 0.8m 40t, cable

Controllers


Weight (including antenna) 173 g
Current Consumption 135 mA@12V (radio on/ready) or 70 mA@24V (radio on/ready)
Input Voltage 12 – 34 VDC
Receiver Channel Eight Channels: 2.410 to 2.475 GHz
Compatibility Configuration Overview

Weight (including antenna) 300 g
Current Consumption 270 mA@12V (radio on/ready) or 110 mA@24V (radio on/ready)
Input Voltage 12 – 24 VDC
Receiver Channel N/a
Compatibility Configuration Overview

Weight (including antenna) 428 g
Current Consumption 135 mA@12V (radio on/ready) or 70 mA@24V (radio on/ready)
Input Voltage 9.5 – 34 VDC
Receiver Channel 8 Channels: 2.410 to 2.475 GHz
Compatibility Refer to page 44 of the manual

Weight (including antenna) 77 g
Current Consumption 135 mA@12V (radio on/ready) or 70 mA@24V (radio on/ready)
Input Voltage 10.5 – 35 VDC
Receiver Channel 14 channels (cmotion red RF)
Compatibility Data Sheet

Weight (including antenna) 507 g
Current Consumption 4A @ 24V (peak)
Input Voltage 12 – 36 VDC
Receiver Channel 60 channels
Compatibility Refer to page 1 & 2 of the manual

Distance Measure


Weight Display 140 g / Sensor 120 g
Current Consumption 0.040 @ 12V or 0.024 @ 24V
Input Voltage 10 – 30 VDC
Compatibility Configuration Overview / Manual

Weight Sensor 170 g / Display 195 g
Current Consumption N/a / 50 to 150 mA
Input Voltage N/a / 9 to 32 VDC
Compatibility Technical Specifications

Compatibility cPRO, Cvolution, WCU-4, HI-5
More Info Product page

Weight Handset 189 g / Sensor 170 g / Display 110 g / Bug 19.1 g
Current Consumption N/a
Input Voltage Sensor: 9 – 30 VDC / The rest battery powered
Compatibility Technical Specifications / LCS

Weight Transmitter 132 g / Receiver 252 g
Current Consumption T: 58 mA @ 9V or 33 mA @ 24V

R: 72 mA @ 6v or 60.2 mA @ 9V

Input Voltage Receiver & Transmitter: 6 – 30 VDC
Compatibility Specifications
